CJX2-F115

Description

Rated current from 115A to 630A, control by AC/DC coil;

Self-sealed after inrush;

Two types (standard, special) have same dimensions;

Contact consumption could be monitored by scale, easy to maintain;

Use same assistant-module as  CJX2F  and  CJX2D  series, could install up to 10 sets of assistant-modules;

Reversing-contactors could be mounted horizontally or vertically;

Zero-arc design, extremely safe;

Specially designed twin-coil ensure quick breaking and energy-saving.

Benefits

> High energy efficient (consumes only 5% of traditional contactor’s power consumption);

> Long life span (short arc time, no contacts vibrate as voltage turbulent, little contact ablation);

> High reliability (little chance of burning coil);

> No noise;

> Anti-disturbance (immune to grid fluctuation);

> No temperature increase of control coil.

Applications

Applied to construction, power, water conservation, buildings etc., and especially suitable in industries as chemical engineering, oil and metallurgy.

All kinds of standard motor or over-load motor, and resistive, inductive and capacitive circuits such as heating, illumination, power factor compensation, transformer and all other standard back-up power switch.

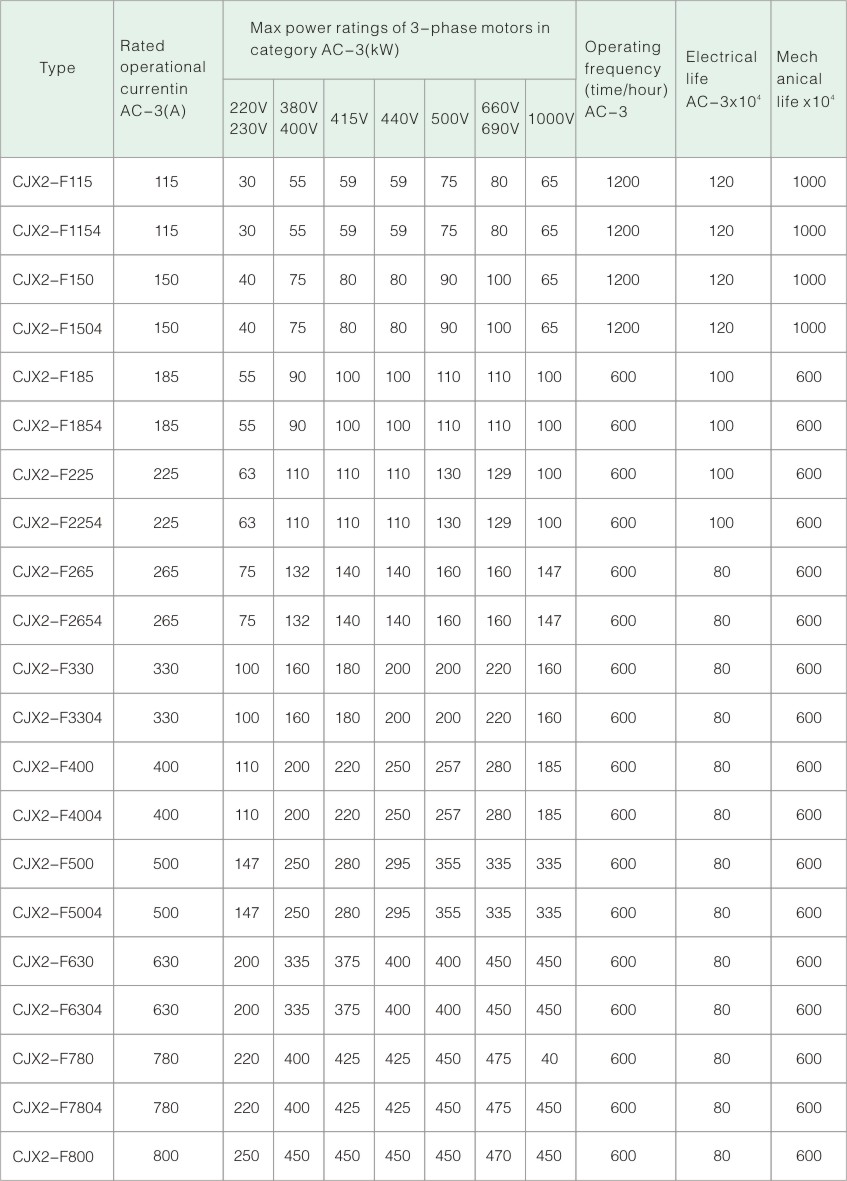

Main technical parameters
